Cast Steel Globe Valves
Kinka Cast Steel Globe and Angle Valves
Design Data and Features
- Valves comply with requirements of applicable standards : ANSI B16.5, B16.10, B16.25, B16.34, API 600 and BS1873.
- Flange dimensions conform to ANSI B16.5, except for class 2500 (14" and 16"), which are not included in ANSI B16.5 rating. These sizes are made to conform to standards for given specifications.
- Butt welding ends are machined to match schedule of pipe specified. They conform to ANSI B16.25.
- Bolted bonnet available for class 150-2500.
- Pressure seal bonnet available for class 600-2500.
- Outside screw and yoke; rising stem.
- Plug type, ball type, flat type or needle type disc and seat.
- Screwed-in, seal welded or integral seats.
Range of Globe Valves
| Body and Bonnet Materials* | Class | Nominal Size |
Cast Carbon Steel
ASTM A216-WCB ASTM A352-WCB Cast Alloy Steel ASTM A217-WC1 ASTM A217-WC6 ASTM A217-WC9 ASTM A217-C5 ASTM A352-LC1 ASTM A352-LC2 ASTM A352-LC3 Cast Stanless Steel ASTM A351-CF8 ASTM A351-CF8M ASTM A351-CF3M |
ANSI-150 | 1 1/2" to 24" ** |
| ANSI-300 ANSI-400 ANSI-600 |
1 1/2" to 24" | |
| ANSI-900 ANSI-1500 ANSI-2500 |
1 1/2" to 16" |
Forged Carbon Steel
ASTM A105 ASTM A350-LF1 ASTM A350-LF2 Forged Alloy Steel ASTM A182-F1 ASTM A182-F5a ASTM A182-F11 ASTM A182-F22 ASTM A350-LF3 Forged Stanless Steel ASTM A182-F304 ASTM A182-F316 |
ANSI-600 ANSI-900 ANSI-1500 ANSI-2500 API602-800 |
3/8" to 2" |
* Body cover and bonnet materials listed here are standard. Other materials are available upon request.
** Cast stainless valves are available from a minimum 1/2" size.

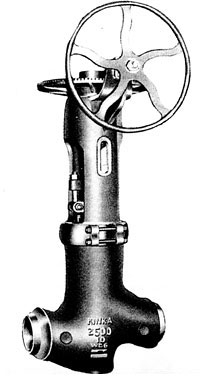

Cast Alloy Steel Globe Valve, Class 2500
