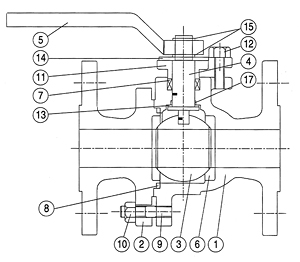

Side Entry Type Floating Ball Valves
| No. | Part Name | Carbon Steel | Stainless Steel | Low Temperature Service |
1 |
Body | A216-WCB | A351-CF8M | A352-LCB |
2 |
Bonnet | A216-WCB | A351-CF8M | A352-LCB |
3 |
Ball | A351-CF8 | A351-CF8M | A351-CF8 |
4 |
Stem | A276-316 | A276-316 | A276-316 |
5 |
Lever | A197 (Gear type handle: A53) | ||
6 |
Seatring | R-PTFE (Glass 15% fiver), Nylon, PEEK, Viton | ||
7 |
Packing | PTFE, Graphite, NBR, Viton | ||
8 |
Bonnet Gasket | Graphite, Graphite+316SS, PTFE, NBR, Viton | ||
9 |
Bonnet Bolt | A193-B7 | A193-B8 | A320-L7 |
10 |
Bonnet Bolt Nut | A194-2H | A194-8 | A194-4 |
11 |
Gland | A351-CF8 | ||
12 |
Gland Bolt | A307-B | A193-B8 | A193-B8 |
13 |
Thrust Washer | PTFE | ||
14 |
Stopper | STEEL + Cr plated | ||
15 |
Snapping | STEEL + Cr plated | ||
17 |
Stopper | PTFE | PTFE | PTFE |
