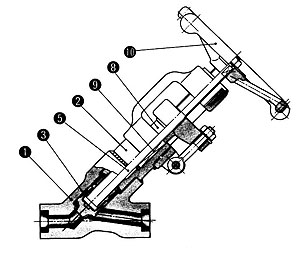

Typical Seal Welded Bonnet Y-Pattern Stop Globe Valves

Typical Seal Welded Bonnet Y-Pattern Stop Globe Valves

1 Body
2 Bonnet with integral backseat.
5 Disc is swivel plug type.
5 Stem
8 Gland is two-piece, ball type which exerts uniform pressure on the packing without binding the stem in the event that nuts are unevenly tightened.
9 Gland Packing
10 Handwheel Hammerblow Type is furnished on size 2 inch only.
