Typical Bolted Cover Swing Check Valves

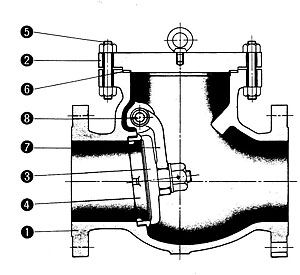

This illustration represents a typical Kinka bolted cover swing check valve. There will be some minor modifications in each class, type and size.
 |
Body |
 |
Cover (lifting bolt is provided on most valves of this type.) |
 |
Disc is swivel plug type. |
 |
Seat Ring is screwed-in or seal-welded on the body. |
 |
Cover Bolts |
 |
Gasket |
 |
Hinge |
 |
Hinge Pin |
