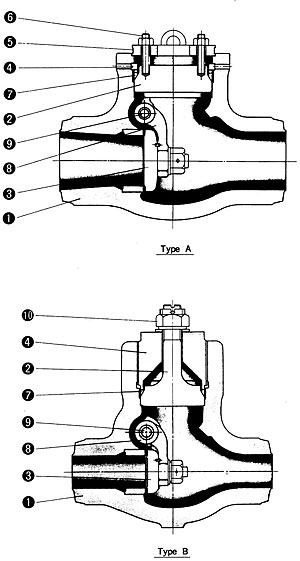

Typical Pressure Seal Bonnet Swing Check Valves
This illustration represents a typical Kinka pressure seal bonnet swing check valve. There will be some minor modifications in each class, type and size.
 |
Body with seal-welded seat ring which is hard faced with stellite. |
 |
Bonnet |
 |
Disc |
 |
Gasket Retainer is either a segmented ring (Type A) or one-piece threaded ring (Type B). |
 |
Bonnet Clamp |
 |
Bonnet Bolts |
 |
Gasket |
 |
Hinge |
 |
Hinge Pin |
 |
Nut is furnished for sizes 4" and smaller of Type B design. |
