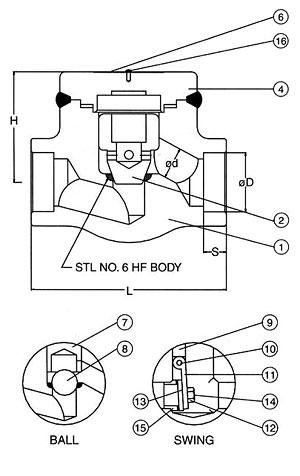

Typical Forged Steel Welded Bonnet Check Valve
This illustration represents a typical Kinka welded bonnet check valve. There will be some minor modifications in each class, type and size.
 |
Body |
 |
Disc |
 |
Bonnet (Cap) |
 |
Bonnet Bolt |
 |
Name Plate |
 |
Bonnet & Ball Guide |
 |
Ball |
 |
Hinge Support |
 |
Hinge Pin |
 |
Hinge |
 |
Disc Lock Nut |
 |
Disc |
 |
Disc Nut Pin |
 |
Seat |
 |
Rivet |
