Typical Forged Steel Bolted Bonnet Gate Valve

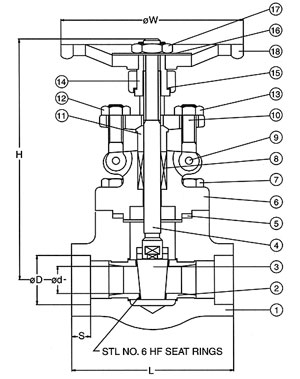

This illustration represents a typical Kinka bolted bonnet gate valve. There will be some minor modifications in each class, type and size.
 |
Body |
 |
Seat Ring |
 |
Disc |
 |
Stem |
 |
Gasket |
 |
Bonnet |
 |
Bonnet Bolt |
 |
Gland Packing |
 |
Eye Bolt Pin |
 |
Eye Bolt |
 |
Gland |
 |
Gland Flange |
 |
Eye Bolt Nut |
 |
Sleeve |
 |
Sleeve Washer |
 |
Name Plate |
 |
Lock Nut |
 |
Hand Wheel |
