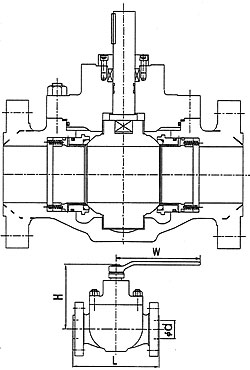

Ball Valves - Trunnion Mounted Ball Type - Valve Class 2500 ( Top Entry )
(Larger sizes available on application) |
Design Data and Features |
| 1 Piece |
| Double block and bleed, Double seal design |
| Sealant injection fitting (optional) |
| Full and reduced bore, Blow-out proof stem |
| Fire safe and Anti-static |
| Mounting flanged to ISO5211 |
| Valve designed to API 6D |
| Valve tested to API 6D and API 598 |
| Face to face to ASME/ANSI B16.10 and API 6D |
| RF flanged ends to ASME/ANSI B16.5 |
| Butt weld ends to ASME/ANSI B16.25 |
| Size |
2 |
3 |
4 |
6 |
8 |
10 |
12 |
| d |
|
in |
1.75 |
2.50 |
3.50 |
5.25 |
7.12 |
8.90 |
10.50 |
| mm |
44 |
64 |
90 |
135 |
180 |
225 |
265 |
| L |
RF |
in |
17.75 |
22.75 |
26.50 |
36.00 |
40.25 |
50.00 |
56.00 |
| mm |
451 |
578 |
673 |
914 |
1022 |
1270 |
1422 |
| RTJ |
in |
17.87 |
23.00 |
26.90 |
36.50 |
40.90 |
50.90 |
56.90 |
| mm |
454 |
584 |
683 |
927 |
1038 |
1292 |
1445 |
| BW |
in |
17.75 |
22.75 |
26.50 |
36.00 |
40.25 |
50.00 |
56.00 |
| mm |
451 |
578 |
673 |
914 |
1022 |
1270 |
1422 |
| H |
|
in |
9.65 |
11.42 |
14.96 |
16.54 |
18.90 |
21.26 |
23.62 |
| mm |
245 |
290 |
380 |
420 |
480 |
540 |
600 |
| W |
|
in |
23.62 |
23.62 |
19.69 |
23.62 |
23.62 |
27.56 |
31.50 |
| mm |
600 |
600 |
500 |
600 |
600 |
700 |
800 |
Other grades available upon request
