Ball Valves - Trunnion Mounted Ball Type - Valve Class 600 ( Top Entry )

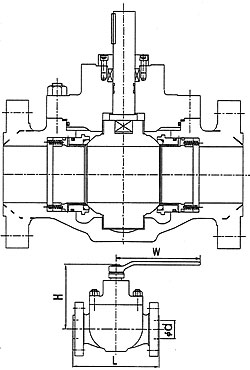

Ball Valves Trunnion Mounted Ball Valve Top Entry Class 600
(Larger sizes available on application)

Design Data and Features

  • 1 Piece
  • Double block and bleed, Double seal design
  • Sealant injection fitting (optional)
  • Full and reduced bore, Blow-out proof stem
  • Fire safe and Anti-static
  • Mounting flanged to ISO5211
  • Valve designed to API 6D
  • Valve tested to API 6D and API 598
  • Face to face to ASME/ANSI B16.10 and API 6D
  • RF flanged ends to ASME/ANSI B16.5
  • Butt weld ends to ASME/ANSI B16.25
  • Size

    2

    3

    4

    6

    8

    10

    12

    14

    16

    18

    20

    24

    d

      in
    2.00
    3.00
    4.00
    6.00
    8.00
    10.00
    12.00
    13.25
    15.25
    17.25
    19.25
    23.25
    mm
    51
    76
    102
    152
    203
    254
    305
    336.5
    387.5
    438
    489
    590

    L

    RF in
    11.50
    14.00
    17.00
    22.00
    26.00
    31.00
    33.00
    35.00
    39.00
    43.00
    47.00
    55.00
    mm
    293
    356
    432
    559
    661
    788
    839
    889
    991
    1093
    1194
    1395
    RTJ in
    11.65
    14.12
    17.12
    22.12
    26.12
    31.12
    33.12
    35.16
    39.12
    43.12
    47.25
    55.37
    mm
    296
    359
    435
    562
    664
    791
    842
    893
    994
    1096
    1200
    1407
    BW in
    11.50
    14.00
    17.00
    22.00
    26.00
    31.00
    33.00
    35.00
    39.00
    43.00
    47.00
    55.00
    mm
    293
    356
    432
    559
    661
    788
    839
    889
    991
    1093
    1194
    1395

    H

      in
    9.06
    11.02
    13.78
    15.35
    16.93
    20.08
    21.26
    22.83
    25.59
    27.95
    31.10
    33.46
    mm
    230
    280
    350
    390
    430
    510
    540
    580
    650
    710
    790
    850

    W

      in
    13.78
    13.78
    23.62
    15.75
    19.69
    23.62
    23.62
    23.62
    31.50
    31.50
    35.43
    35.43
    mm
    350
    350
    600
    400
    500
    600
    600
    600
    800
    800
    900
    900

    Other grades available upon request
